🔄 LX WE14 Circulation Pump 10-WE14-240 — 1/4 HP 1-Speed 230V — Laing E14 Replacement

Whisper-quiet 24/7 spa circulation — drop-in replacement for the Laing E14 with enhanced seal longevity

♨️ Product Overview

The LX WE14 (Part No. 10-WE14-240) is a 1/4 HP, single-speed, 230V circulation pump manufactured by Lingxiao (LX Pumps), designed specifically as a replacement for the widely used Laing Thermotech E14 spa circulation pump. Engineered for continuous 24/7 operation, the WE14 delivers quiet, reliable water circulation through your hot tub’s filtration and heating system — keeping your spa water clean, warm, and ready to use at all times.

The WE14 features hydraulic performance and port dimensions identical to the Laing E series, with 1-1/2″ MBT (Male Buttress Thread) center suction and side discharge connections. Its adjustable wet end rotates to five different discharge positions (9:00, 10:30, 12:00, 1:30, and 3:00) for flexible plumbing alignment. At just 9.84″ long, 6.06″ wide, and 6.42″ tall, the WE14 fits most existing E14 compartments — though the motor housing is slightly larger than the original Laing E14, so always verify available space before ordering.

Key improvements over the original Laing E14 include a specially designed mechanical seal that resists crystal residue buildup from spa disinfection chemicals (chlorine, bromine, salt), increased motor starting torque to prevent seal friction issues at startup, and high-temperature grease bearings for extended life. The squirrel cage asynchronous motor with Class F insulation, IP55 protection rating, and automatic thermal overload protection ensures safe, reliable operation in demanding spa environments. Used as OEM equipment in Master Spas, LA Spas, Artesian Spas, Clearwater Spas, and many more.

✨ Key Features

• ✅ 1/4 HP Single Speed — Engineered for continuous 24/7 spa water circulation
• ✅ 230V / 60Hz — Standard US 230V spa circuit compatible
• ✅ Direct Laing E14 Replacement — Identical port dimensions and hydraulic performance to the Laing E series
• ✅ Whisper-Quiet Operation — Less than 50 dB — designed for noise-sensitive spa environments
• ✅ 5-Position Adjustable Wet End — Rotates to 9:00, 10:30, 12:00, 1:30, and 3:00 for flexible plumbing alignment
• ✅ Enhanced Mechanical Seal — Special material resists crystal residue from chlorine, bromine, and salt disinfection — designed for 5-year service life
• ✅ Increased Motor Starting Torque — Prevents mechanical seal friction problems at startup
• ✅ Automatic Thermal Overload Protection — Protects motor from overheating damage
• ✅ IP55 Protection Rating — Dust protected and water jet resistant
• ✅ Class F Insulation — Rated for high-temperature motor environments (up to 155°C / 311°F winding temperature)
• ✅ High-Temperature Grease Bearings — Extended bearing life in hot tub environments
• ✅ OEM Equipment — Used by Master Spas, LA Spas, Artesian Spas, Clearwater Spas, and others

🔩 Technical Specifications

Specification	Value
Part Number	10-WE14-240
Alternate Part Numbers	10WE14240, WE14, WE14-240, WE14-230, 15-973-2014, 34-343-1090, HQ10WE14240
Manufacturer	LX Pumps / Lingxiao (Powerful Water Technology Limited)
Pump Model	WE14
Pump Type	Circulation Pump
Motor Power	1/4 HP (0.25 HP)
Speed Settings	1-Speed (Single)
RPM	3,450 (60Hz US market)
Voltage	230V (220–240V)
Frequency	60 Hz
Amperage	See the amperage note below
Motor Type	Squirrel cage asynchronous
Frame Type	48Y
Suction Port Size	1-1/2″ MBT (Male Buttress Thread)
Discharge Port Size	1-1/2″ MBT (Male Buttress Thread)
Suction Location	Center (front face)
Discharge Location	Side — Adjustable to 5 positions
Thread Outer Diameter	Approximately 2-7/16″ (62mm)
Flow Rate (Max)	Up to 40 GPM (approximately 153 liters/min)
Maximum Working Pressure	0.3 MPa (approximately 43.5 PSI)
Dimensions (L × W × H)	9.84″ × 6.06″ × 6.42″
Noise Level	Less than 50 dB
Insulation Class	F (155°C / 311°F)
Protection Rating	IP55
Thermal Protection	Automatic overload — single phase
Medium Temperature Range	32°F to 122°F (0°C to +50°C)
Environmental Temperature	Up to 122°F (+50°C)
Seal Design	Mechanical seal — special material to resist disinfection chemical crystal residue
Country of Manufacture	China (LX / Lingxiao)
Warranty	1 Year (Manufacturer)

⚠️ Amperage Note — Important: Amperage ratings from different sources vary for this pump:

Electrically, a 230V pump drawing the same wattage as a 120V version should draw approximately half the current. The 120V WE14 (10-WE14-120) is consistently rated at 1.6A across all sources. This suggests the 230V version likely draws approximately 1.0A in actual operation. The 1.6A rating listed by some retailers may reflect the 120V specification being applied to the 230V listing. Always verify the motor nameplate on your specific pump and size your circuit accordingly.

⚠️ Cord and Unions Note: Inclusion of cord and unions varies by distributor. Some distributors include a 48″ AMP-style cord and 1-1/2″ unions; others sell them separately. Confirm with Parts4Tubs at time of order what accessories are included.

⚡ Electrical Requirements

Electrical Spec	Requirement
Supply Voltage	230V (220–240V)
Frequency	60 Hz
Phase	Single
Amperage	1.0A to 1.6A (see note above)
Thermal Protection	Automatic overload (built-in)
Connector Type	AMP-style connector (verify cord inclusion)

⚠️ IMPORTANT:

All electrical work must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local and state building codes.

Hot tubs and spas require GFCI (Ground Fault Circuit Interrupter) protection. A dedicated circuit is required — do not share with other appliances.

This is a 230V pump. Do NOT connect to a 115V circuit. If replacing a 115V Laing E14, verify that your spa controller’s circulation pump circuit is wired for 230V before installing this pump. If your spa uses a 115V circulation pump circuit, order the 120V version (10-WE14-120) instead.

This pump does NOT include a built-in flow sensor cable. If your original Laing E14 has a flow sensor cable, this pump will not work as an exact replacement without addressing the flow sensor separately.

🔗 Compatibility Guide

This Pump:

• 📐 Suction: 1-1/2″ MBT — Center (front face)
• 📐 Discharge: 1-1/2″ MBT — Side (adjustable to 5 positions)
• 📐 Thread OD: ~2-7/16″ (62mm)
• 📐 Dimensions: 9.84″ L × 6.06″ W × 6.42″ H

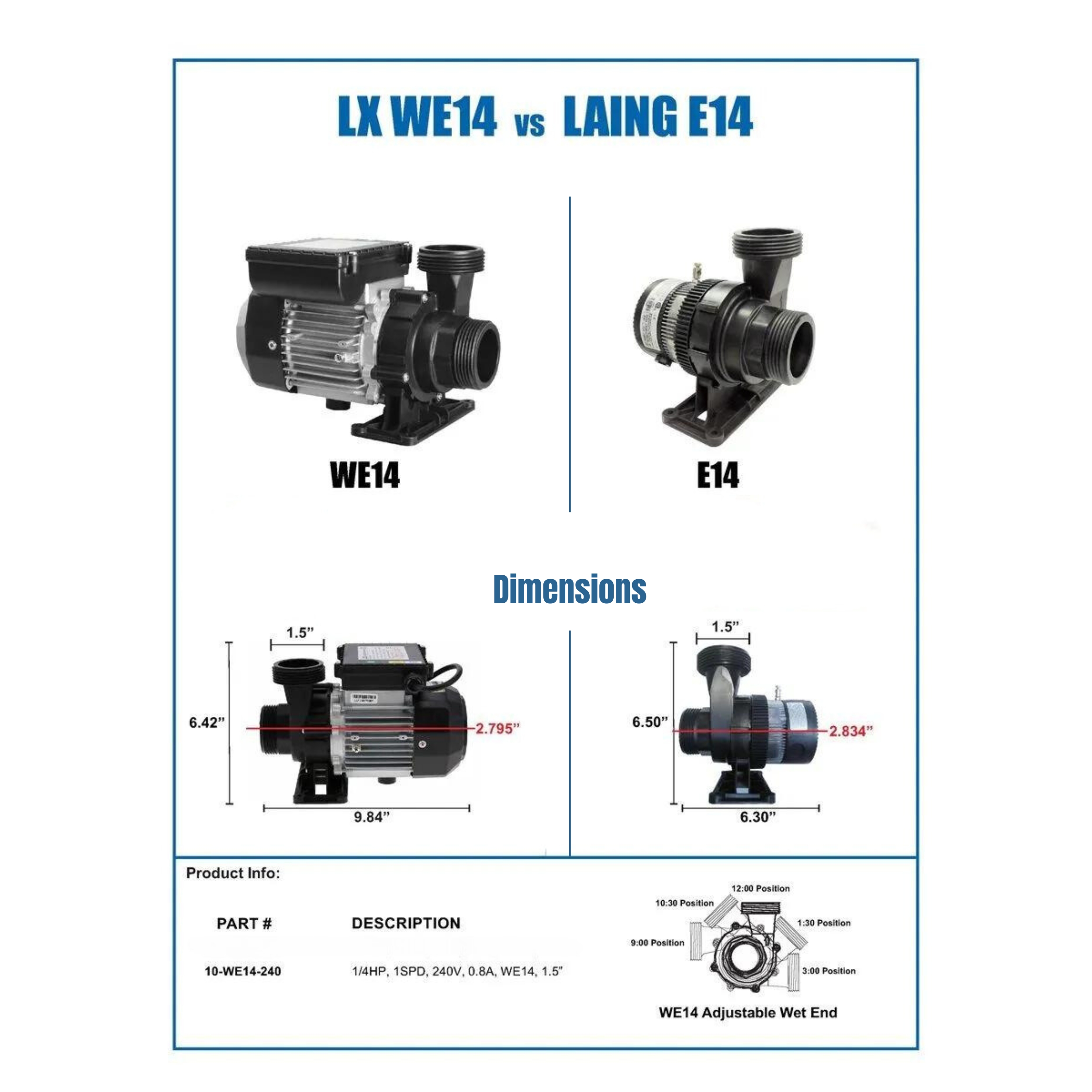

Direct Replacement for Laing E14 (230V Models):

The LX WE14 is designed with identical port dimensions and hydraulic performance to the Laing E series. The motor housing is slightly larger than the original Laing E14 — always verify available space in your pump compartment.

Laing E14 Cross-Reference Part Numbers:

Part Number	Notes
73348	Laing E14 — Primary cross-reference
73229	Laing E14 variant
73329	Laing E14 variant
37749	Laing E14 cross-reference
E14-NSTNNN2W-10	Laing E14 model designation
E14-NST2NW-10	Laing E14 model designation
E14-NSTNDNN2W-02	Laing E14 model designation
E14-NSTNDNN2W-03	Laing E14 model designation
E14-NSTNDNN2W-01	Laing E14 model designation
E14-NSTN2W-10	Laing E14 model designation
6080U0014	Laing cross-reference
6080U0015	Laing cross-reference
6080U0016	Laing cross-reference
10-0107	Hydro-Quip part number
10-0107-K	Hydro-Quip part number
301524	Cross-reference
9338-40	Cross-reference
LHB07100142	Laing cross-reference
LHB07100027	Laing cross-reference
LHB07102983	Laing cross-reference
LMB07102983	Laing cross-reference
LMB07100028	Laing cross-reference
733886733488	UPC cross-reference
1-00-0214	Cross-reference
34-158-1500	Cross-reference
5EL-64109-1	LA Spas part number

Spa Brand-Specific Part Numbers:

Part Number	Spa Brand
X400825	Master Spas
X320581	Master Spas (variant)
X320582	Master Spas (variant)
73359	LA Spas
5EL-64109-1	LA Spas
EL-64109	LA Spas
21-0008-19	Artesian Spas

Also Used In:

• Master Spas (including Twilight series)
• LA Spas
• Artesian Spas
• Clearwater Spas
• And many other spa brands using the Laing E14 circulation pump

⚠️ Size Warning: The LX WE14 motor housing is slightly larger than the original Laing E14. The wet end is very similar — just the motor section is bigger. Always measure your available pump compartment space and compare against the WE14 dimensions (9.84″ L × 6.06″ W × 6.42″ H) before ordering.

⚠️ Flow Sensor Warning: The LX WE14 does NOT include a flow sensor cable. If your original E14 circulation pump has a flow sensor cable connected to it, this pump will NOT work as a direct plug-in replacement without addressing the flow sensor requirement separately.

🛠️ Installation Requirements

Mounting:

Requirement	Specification
Mounting Position	Horizontal — on level surface
Discharge Orientation	Adjustable to 5 positions: 9:00, 10:30, 12:00, 1:30, and 3:00
Space Required	Verify compartment fits 9.84″ L × 6.06″ W × 6.42″ H

How to Rotate the Wet End:

1. Remove the foot pad (a small pry bar may be required the first time)
2. Remove the four screws on the front of the pump
3. Rotate the wet end to the desired discharge orientation
4. Reattach the foot pad to the new bottom position of the pump

Plumbing:

Connection	Size
Suction (Intake)	1-1/2″ MBT — Center (front face)
Discharge	1-1/2″ MBT — Side (adjustable)
Thread OD	Approximately 2-7/16″ (62mm)
Union Type	1-1/2″ standard unions (verify inclusion)

Installation Notes:

⚠️ Verify your spa controller’s circulation pump circuit is wired for 230V before installing

⚠️ The motor housing is slightly larger than the original Laing E14 — measure your compartment space

⚠️ This pump does NOT include a flow sensor cable — verify compatibility with your spa control system

⚠️ You may be able to reuse your existing pipe fittings and unions if they are still functional and match the 1-1/2″ MBT thread

⚠️ Ensure proper grounding and bonding per NEC requirements

⚠️ GFCI protection is required by code for all hot tub and spa installations

⚙️ Maintenance Guide

Routine Maintenance:

Task	Frequency	Notes
Check for leaks	Monthly	Around seal and union connections
Verify pump is running	Weekly	Continuous circulation pumps should run 24/7
Inspect unions	Monthly	Hand tighten if needed
Clean spa filter	Per manufacturer schedule	Clogged filter increases pump workload
Check for unusual noise	Weekly	Should be whisper quiet — less than 50 dB
Inspect power cord/connector	Quarterly	Check AMP connector for damage or corrosion

Warning Signs — Replace Pump If:

• Unusual noise (grinding, humming, or rattling)
• Water leaking from mechanical seal
• Pump not starting or tripping breaker
• Reduced water flow or no circulation
• Motor overheating
• Pump vibrating excessively

Seal Information:

The LX WE14 uses a specially designed mechanical seal with material engineered to resist crystal residue buildup from spa disinfection chemicals (chlorine, bromine, salt). The manufacturer rates this seal design for a 5-year service life. Replace the pump or seal at first sign of leakage.

🎯 Ideal Applications

Application	Suitability	Notes
♨️ 24/7 spa water circulation	✅ Yes — Primary application	Designed for continuous operation
♨️ Spa filtration loop	✅ Yes	Low power (1/4 HP) for energy-efficient continuous filtration
♨️ Laing E14 replacement (230V)	✅ Yes — Direct replacement	Identical port dimensions and hydraulic performance
♨️ Master Spa circulation	✅ Yes	Verified OEM replacement (X400825)
♨️ LA Spa / Artesian Spa circulation	✅ Yes	Verified OEM replacement
♨️ Jet pump replacement	❌ Not suitable	1/4 HP is for circulation only — not powerful enough for jets
♨️ 115V spa system	❌ Wrong voltage	Use 10-WE14-120 for 115V systems

❓ Frequently Asked Questions

Q: What horsepower is this pump? A: 1/4 HP (0.25 HP). This is a low-power circulation pump designed for continuous 24/7 water circulation — not a jet pump.

Q: Is this a direct replacement for the Laing E14? A: Yes, with two important caveats: (1) The motor housing is slightly larger than the original Laing E14, so verify your pump compartment has enough space for the WE14 dimensions (9.84″ × 6.06″ × 6.42″), and (2) this pump does NOT include a flow sensor cable — if your original E14 has one, you’ll need to address the flow sensor separately.

Q: What voltage does this pump require? A: 230V (220–240V) / 60Hz. This is NOT a 115V pump. If your spa’s circulation pump circuit runs on 115V, order the 10-WE14-120 instead. All electrical work must be performed by a licensed electrician.

Q: Is a cord included? A: Cord and union inclusion varies by distributor packaging. Some include a 48″ AMP-style cord and 1-1/2″ unions; others sell them separately. Confirm with Parts4Tubs at time of order.

Q: What size are the ports? A: Both suction (center) and discharge (side) are 1-1/2″ MBT (Male Buttress Thread). The outer thread diameter is approximately 2-7/16″ (62mm).

Q: How quiet is this pump? A: Less than 50 dB — whisper-quiet operation. The WE14 is specifically designed for noise-sensitive spa environments where the circulation pump runs continuously.

Q: Can I rotate the discharge direction? A: Yes. The wet end is adjustable to 5 positions: 9:00, 10:30, 12:00, 1:30, and 3:00. Remove the foot pad and four front screws, rotate to the desired position, and reattach.

Q: What spa brands use this pump? A: The LX WE14 is used as OEM equipment or verified replacement in Master Spas (including Twilight series), LA Spas, Artesian Spas, Clearwater Spas, and many other brands that originally used the Laing E14.

Q: How long does the seal last? A: The manufacturer rates the mechanical seal for a 5-year service life. The seal uses special material designed to resist crystal residue buildup from chlorine, bromine, and salt disinfection chemicals.

Q: What warranty is included? A: 1-year manufacturer warranty. Contact Parts4Tubs for full warranty terms.

Q: Do I need a GFCI breaker? A: Yes. GFCI protection is required by the National Electrical Code (NEC) for all hot tub and spa electrical installations.

Q: What is the difference between 10-WE14-240 and 10-WE14-120? A: The only difference is voltage. The 10-WE14-240 operates on 230V (for spas with 230V dedicated circuits), while the 10-WE14-120 operates on 115V. The pump, wet end, and plumbing connections are otherwise identical. Never wire a 230V pump to a 115V circuit or vice versa.

🏆 Why Choose the LX WE14

• ✅ Direct Laing E14 replacement — Identical port dimensions and hydraulic performance
• ✅ Whisper-quiet — Less than 50 dB for unobtrusive 24/7 operation
• ✅ Enhanced 5-year seal design — Special material resists crystal residue from spa chemicals
• ✅ 5-position adjustable wet end — Flexible discharge orientation for any plumbing configuration
• ✅ IP55 protection with Class F insulation — Built for demanding spa environments
• ✅ Automatic thermal overload protection — Prevents motor damage from overheating
• ✅ Proven OEM compatibility — Used in Master Spas, LA Spas, Artesian Spas, and more
• ✅ Energy efficient — 1/4 HP uses minimal electricity for continuous 24/7 circulation

🤝 Why Buy from Parts4Tubs

• ✅ US-based support for American customers
• ✅ Fast shipping across the United States
• ✅ Expert advice from spa and hot tub specialists
• ✅ Competitive pricing in USD
• ✅ Full warranty support
• ✅ Hassle-free returns
• ✅ Replacement parts and accessories available
• ✅ Dedicated customer service team

💧 Summary

The LX WE14 (10-WE14-240) is a 1/4 HP, single-speed, 230V circulation pump engineered as a direct replacement for the Laing Thermotech E14. With up to 40 GPM flow rate, whisper-quiet operation under 50 dB, a 5-position adjustable wet end, and enhanced mechanical seal technology rated for 5-year service life, the WE14 delivers reliable 24/7 spa water circulation. IP55 protected with Class F insulation and automatic thermal overload protection, it’s proven in Master Spas, LA Spas, Artesian Spas, Clearwater Spas, and more. 1-1/2″ MBT connections at 9.84″ × 6.06″ × 6.42″ — verify your compartment space and order today from Parts4Tubs for fast US shipping.

Showing 1 – 5 of 5 results Showing all 5 results Showing the single result No results found

Sort by Price low to high

Sort by Popularity

Sort by Rating

Sort by Price low to high

Sort by Price high to low

Sort by Newness

Sort by Name A - Z

Sort by Name Z - A

Filters Sort results

Reset Apply

	Magic Plastics Union 0602-15 (1.5″ Pump Union) | 1-1/2″S x 1-1/2″FBT Union, Pump, Magic, 1-1/2"S x 1-1/2"FBT (Industry Standard) w/ O-Ring	$6.36 Max: 597 Min: 1 Step: 1 Add to cart
	Magic Plastics Union 0602-20 (2″ Pump Union) | 2″S x 2″FBT w/ O-Ring Union, Pump, Magic, 2"S x 2"FBT (Industry Standard) w/ O-Ring	$8.00 Max: 575 Min: 1 Step: 1 Add to cart
	Waterway Union 400-6010 | 2-1/2″ Union Nut with 2-1/2″ Slip tailpiece and o-ring (2.5″ union) Union, Pump, Waterway, 2-1/2"FBT x 2-1/2"S	$14.77 Max: 83 Min: 1 Step: 1 Add to cart
	1 Speed Pump / Blower / AMP Cord | 21086 Amp Plug, Pump, 1-Speed, 14/3, 4-Pin, 5' Cord, White	$24.71 Max: 356 Min: 1 Step: 1 Add to cart
	Balboa Amp Plug 21087 (For 2 Speed Pumps) Amp Plug, Pump 1 (2-Speed) 14/4, 72" Long, White	$31.72 Max: 153 Min: 1 Step: 1 Add to cart

Hot Tub Pump Collar & Union Size Chart

Imperial & Metric Specifications

Union Size	Collar Size	Thread OD	Union OD	O-Ring Size
1.5" Female Buttress Thread (FBT)	2.5" / 64mm (Tip to Tip) Measurement	2-1/2" 64mm	2-13/16" 71mm	2-5/16" OD 59mm
2" Female Buttress Thread (FBT)	3.1" / 78mm (Tip to Tip) Measurement	3-1/16" 78mm	3-3/8" 81mm	2-15/16" OD 75mm
2.5" Female Buttress Thread (FBT)	3.6" / 91mm (Tip to Tip) Measurement	3-5/8" 91mm	4-1/4" 108mm	3-7/16" OD 87mm

Important Notes

The union "size" (1.5", 2", 2.5") is nominal and doesn't correspond to any actual measurement.

Collar size is measured from thread tip to thread tip on the pump outlet.

Most hot tub pumps use Female Buttress Thread (FBT) - 98% of applications.

O-ring gaskets may vary between manufacturers - measure your existing gasket for accuracy.

How do I Replace a Hot Tub Pump?

Here's a general step-by-step guide on how to replace a hot tub pump. Keep in mind that the specific steps may vary depending on your hot tub's make and model, so it's essential to consult your hot tub's manual for model-specific instructions. If you're not comfortable with this procedure, it's a good idea to seek professional assistance.

Materials You'll Need:

• Replacement pump
• Pipe wrench
• Adjustable wrench
• Screwdriver
• Pipe sealant (thread tape or plumber's putty)
• PVC primer and cement (if you have PVC plumbing)
• Teflon tape (for threaded connections)

Procedure:

1. Turn Off the Power: Before you begin, ensure the hot tub's power supply is turned off at the circuit breaker or disconnect switch. Safety should always be a priority when working with electrical components.

2. Drain the Hot Tub: If your hot tub is not already empty, you'll need to drain it. Follow your hot tub's manual or manufacturer's instructions for proper draining. (You might not need to do this if you can lock the pump off with the gate valves)

3. Locate the Pump: Identify the location of the existing pump in your hot tub. It's usually located near the equipment area or in a designated pump compartment.

4. Disconnect the Electrical Wiring: Carefully disconnect the electrical wiring from the old pump. This typically involves removing the electrical conduit cover, unscrewing wire nuts, and disconnecting the wires from the terminals. Be sure to note the wire connections or take a picture for reference when connecting the new pump.

5. Disconnect the Plumbing: Depending on your hot tub's plumbing setup, you'll need to disconnect the plumbing connections to the pump. Use a pipe wrench or adjustable wrench to loosen and remove the fittings. Be prepared for some water spillage when disconnecting the plumbing.

6. Remove the Old Pump: Once the electrical and plumbing connections are detached, carefully remove the old pump from its mounting position. Some pumps may be secured with mounting brackets or bolts.

7. Prepare the New Pump: If the new pump is not pre-assembled, you may need to attach fittings, unions, or adapters to match your hot tub's plumbing. Ensure that you use the appropriate sealant or Teflon tape on threaded connections to prevent leaks.

8. Mount the New Pump: Position the new pump in the same location as the old one and secure it in place using the mounting brackets or bolts.

9. Reconnect Plumbing: Reconnect the plumbing to the new pump, ensuring that all connections are tight and secure. If your hot tub uses PVC plumbing, use PVC primer and cement to bond the connections properly.

10. Reconnect Electrical Wiring: Reconnect the electrical wiring to the new pump, following the notes or pictures you took earlier. Make sure all wires are properly connected and secure.

11. Turn On the Power: Restore power to the hot tub by switching on the circuit breaker or reconnecting the disconnect switch.

12. Test the Pump: Turn on the hot tub's pump to ensure that it's working correctly. Check for any signs of leaks or irregularities in the plumbing connections.

13. Refill the Hot Tub: Once you've confirmed that the new pump is functioning properly, refill the hot tub with water.

14. Check for Leaks: Inspect the plumbing connections for any leaks. If you find any, turn off the pump, drain the tub again, and reseal the connections as needed.

15. Monitor: Keep an eye on the pump and plumbing for the next few days to ensure everything is functioning correctly and that there are no further issues.

Remember that this is a general guideline, and the specific steps may vary based on your hot tub's design. If you're unsure or uncomfortable with any aspect of this process, please do get in touch, happy to help.

How do I know what size hot tub pump I have?

Determining the size of your hot tub pump is an important step when it comes to maintenance or replacement. To find out the size of your hot tub pump, follow these steps:

1. Check the Manual: The easiest way to determine the size of your hot tub pump is to consult the owner's manual or user documentation that came with your hot tub. The manual typically contains detailed information about the specifications and components of your hot tub, including the pump.

2. Look at the Pump Housing: If you don't have access to the manual or it doesn't provide the information you need, inspect the pump itself. Most hot tub pumps have a label or plate on the pump housing that displays essential details, including the pump's model number, manufacturer, and specifications. You can then send that to me or Google it.

3. Measure the Pump: If the label is missing or damaged, you can measure the pump's dimensions. Measure the diameter of the pump's wet end (the part where the water flows) and the length of the wet end. These measurements can help identify the size and capacity of the pump.

4. Consult the Manufacturer: If you can't find the information on the pump or in the manual, contact the hot tub manufacturer or a reputable dealer. Provide them with your hot tub's model and serial number, and they should be able to identify the correct pump size for your specific hot tub.

5. Online Research: You can also search online using the pump's model number or hot tub's make and model. Many manufacturers provide detailed information about their products on their websites, and you may find specifications for your pump model.

Once you have determined the size and specifications of your hot tub pump, you can proceed with maintenance, repairs, or replacement if necessary. Keep in mind that replacing a hot tub pump with the same size and capacity as the original is crucial to ensure proper water circulation and filtration in your hot tub. If you're unsure about any aspect of this process, get in touch, always happy to help.
