Balboa ML400 Topside Control Panel (Without Overlay) — Compatible with Balboa EL & GL Series Spa Packs

📥 Downloads & Resources

📄 Installation Manual — Please refer to your specific Balboa EL or GL series spa pack manual for detailed installation and wiring instructions.

🎛️ Balboa ML400 Topside Control Panel (Without Overlay) — Compatible with Balboa EL & GL Series Spa Packs

Genuine Balboa Water Group replacement panel — precision control for effortless hot tub management.

📋 Product Overview

The Balboa Water Group ML400 is a 4-button electronic topside control panel with a graphical LCD display, designed to operate Balboa EL Series (Elite) and GL Series (Global) spa pack control systems. This listing is for the panel without overlay — ideal for spa technicians, hot tub builders, and homeowners who plan to transfer their existing button overlay or order a custom overlay sticker separately.

The ML400 supports advanced functions of EL/GL controls that use Balboa’s M7 temperature and flow sensor technology. The sleek oval panel features a clear LCD screen with moving function icons, maintenance reminders, and service alerts. With its 7-foot cable and 8-pin Molex (Mate-N-Lok) connector, this is a direct OEM replacement for failed or damaged ML400 topsides.

This is a genuine Balboa Water Group part — not a copy or aftermarket alternative. Pair it with the matching ML400 overlay (sold separately) to complete a fresh, factory-quality replacement on your spa.

⭐ Key Features

• ✅ Genuine Balboa Water Group OEM — Authentic factory part, not aftermarket
• ✅ 4-Button Electronic Control — Operates Jets, Aux, Temperature, and Light when paired with standard overlay
• ✅ Graphical LCD Display — Shows temperature, mode icons, maintenance reminders, and error codes
• ✅ Compatible with Balboa EL & GL Series — Works with EL2000, EL8000, GL2000, GL2001, GL8000 spa packs

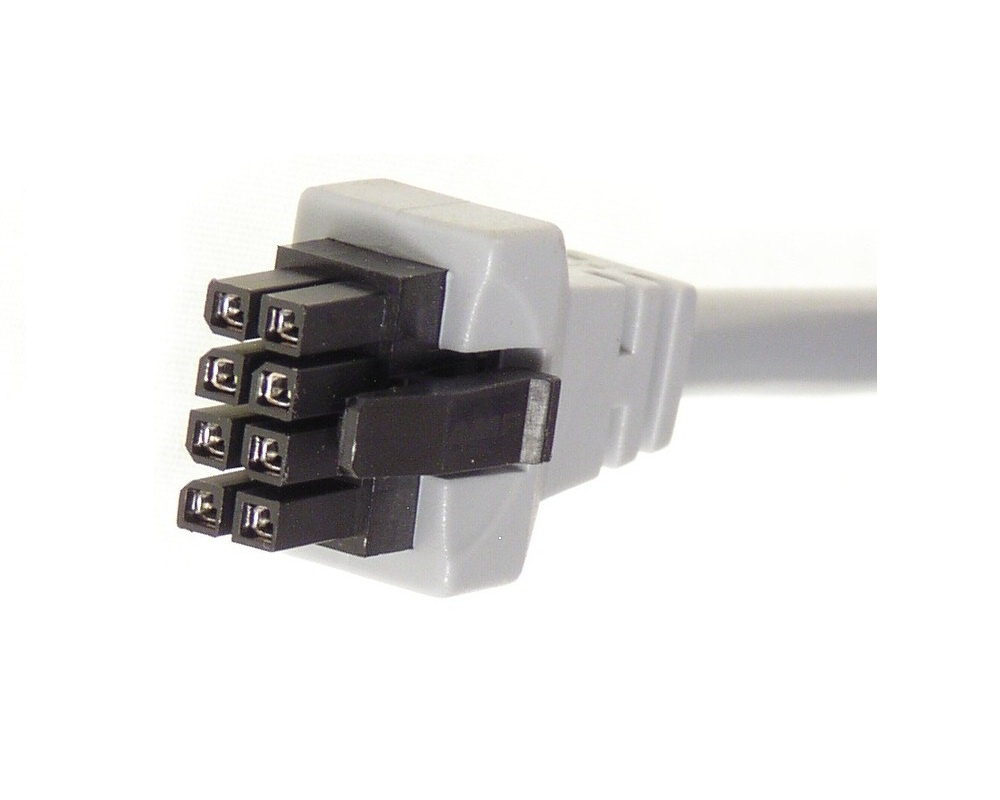

• ✅ 8-Pin Molex Connector — Mate-N-Lok plug specific to Balboa ML series
• ✅ 7-Foot Cable — Sufficient length for most spa cabinet runs; extension cables available
• ✅ Oval Panel Profile — Compact 7-1/2″ × 2-3/8″ footprint suits standard ML cutouts
• ✅ Hot-Swappable Design — ML panels are interchangeable across compatible systems
• ✅ Without Overlay — Perfect for transferring an existing overlay or installing a custom one
• ✅ Direct Replacement — Replaces Balboa OEM 53291 (and 52684 when paired with an overlay)
• ✅ Service-Ready — Used by spa builders, repair technicians, and OEM partners
• ✅ 1-Year Manufacturer Warranty — Backed by Balboa Water Group

🔧 Technical Specifications

Specification	Value
Manufacturer	Balboa Water Group
Model	ML400
Part Type	Topside Only (No Overlay Included)
Topside Type	Electronic
Display Type	LCD (graphical)
Number of Buttons	4
Cable Length	7 ft
Connector Type	8-Pin Molex (Mate-N-Lok)
Panel Shape	Oval
Panel Dimensions	7-1/2″ × 2-3/8″ (190 × 58 mm)
Overlay Included	No — purchased separately
Compatible Overlay (standard layout)	Jets, Aux, Temp, Light
Compatible Spa Pack Series	Series Spa pack models EL1000 EL1000, EL1000P2 EL2000 EL2000 EL2001 EL2001 EL5000 EL5000‡ EL8000 EL8000‡ Not for: Balboa BP or VS spa packs (BP packs take TP or spaTouch panels, VS packs take VL panels) ‡ Remote/additional panel only on this pack, not the main panel.
Voltage Compatibility	Works with both 120V and 240V spa packs (low-voltage signal panel)
Color	Black
Warranty	1-Year Limited (Balboa Water Group)

📌 Cutout size and operating temperature range are determined by the specific spa pack and overlay used. See your spa pack manual for exact values.

🔧 Parts and fittings for this

🔗 Compatibility Guide

This Topside is Compatible With:

Spa Pack Model	Series	Confirmed
EL2000	Balboa Elite	✅
EL8000	Balboa Elite	✅
GL2000	Balboa Global	✅
GL2000 M3	Balboa Global	✅
GL2001	Balboa Global	✅
GL2001 M3	Balboa Global	✅
GL8000	Balboa Global	✅
GL8000 M3	Balboa Global	✅

Replaces These Older Topside Part Numbers:

• ✅ Balboa 53291 (topside without overlay — direct OEM equivalent)
• ✅ Balboa 52684 (topside with overlay — when paired with a standard ML400 overlay)
• ✅ Balboa 54460
• ✅ Balboa G8340 (newer Balboa part number)
• ✅ 9705-121
• ✅ 389121

NOT Compatible With:

• ❌ Balboa VS, GS, BP series spa packs (use VL or TP series topsides instead)
• ❌ Gecko, HydroQuip, ACC, or non-Balboa control systems
• ❌ Older M-series or VL-series Balboa spa packs

How to Verify Compatibility:

📍 Check your spa pack model — it will be on a label inside the equipment cabinet 📍 Look for “EL” or “GL” prefix in the spa pack model number 📍 Confirm your existing topside has an 8-pin Molex (Mate-N-Lok) connector 📍 Compare your old topside dimensions to 7-1/2″ × 2-3/8″ 📍 Contact Parts4Tubs with your spa pack number if you’re unsure

⚠️ Important: ML series panels use a unique 8-pin Mate-N-Lok plug that ONLY fits EL and GL spa packs. Installing this on a non-EL/GL system will not work.

🔘 Button Functions & Display

When paired with the standard ML400 overlay, the four buttons control the following functions (left to right):

Button	Function
Jets	Turns the main jet pump on/off and cycles speeds
Aux	Operates auxiliary pump or air blower
Temp	Adjusts set water temperature (also used to view set temp)
Light	Turns spa light on/off and cycles modes if supported

📌 Other overlay layouts are available from Balboa for spas with different feature configurations. Always match the overlay to your spa pack’s configuration.

Display Information:

Display Element	Shows
Temperature	Current and set water temperature (°F)
Function Icons	Pump, heater, blower, and light status
Maintenance Reminders	Scheduled service alerts
Error Codes	Diagnostic codes from the spa pack

🔌 Installation Guide

Before Installation:

• ⚠️ Disconnect power at the GFCI breaker before any work
• ⚠️ Confirm your spa pack is an EL or GL series model
• ⚠️ Verify the cable will reach from the topside cutout to the spa pack
• ⚠️ Have your replacement overlay ready (or carefully transfer the existing one)

Installation Steps:

1. Turn off power at the GFCI / disconnect serving the spa
2. Open the spa cabinet and locate the topside cable on the spa pack
3. Disconnect the old cable from the spa pack — note the port location
4. Remove the old topside from the spa shell cutout
5. Carefully transfer the existing overlay to the new panel (or apply your new overlay sticker)
6. Route the new cable through the cabinet to the spa pack
7. Plug the new 8-pin Molex into the spa pack in the same port the old one used
8. Mount the new topside in the spa shell cutout
9. Restore power at the breaker
10. Test all functions — Jets, Aux/Blower, Temperature adjustment, and Light

⚠️ Professional installation by a licensed electrician is recommended if you’re unfamiliar with spa electronics. All work must comply with the National Electrical Code (NEC) and local codes.

🔗 Wiring & Connection

Connector Information:

Specification	Detail
Connector Type	8-Pin Molex (Mate-N-Lok), two rows of four pins
Cable Length	7 ft standard
Extension Available	Yes — 50 ft and 100 ft Balboa-compatible extensions are available

Connection Location:

Plugs into the topside port on Balboa EL or GL series spa packs.
Use the same port the original topside cable was plugged into.

⚠️ Never force the connector. The 8-pin Mate-N-Lok plug should slide in cleanly. If it doesn’t fit, your spa pack is likely not an EL or GL series — verify before proceeding.

🔍 Troubleshooting

Common Issues:

Problem	Possible Cause	Solution
Blank display	No power or loose connection	Verify breaker on; reseat the Molex plug at the spa pack
Error codes shown	Spa pack issue (sensor, flow, heater)	Refer to your spa pack manual for code meanings
Buttons unresponsive	Worn overlay or moisture intrusion	Inspect overlay for wear or water damage
Incorrect temperature	Sensor fault on spa pack (not topside)	Check temperature sensor and high-limit sensor
Garbled display	Damaged cable or panel fault	Inspect cable for kinks; replacement may be needed

Error Codes:

Error codes are generated by the spa pack, not the topside.
Refer to your specific EL or GL series manual for code definitions.

🛠️ Maintenance & Care

Routine Care:

Task	Frequency
Wipe panel face with damp cloth	Weekly
Check button response	Monthly
Inspect cable connections	Annually
Inspect overlay for wear and water seal	Annually

DO NOT:

• ❌ Use abrasive cleaners or scouring pads
• ❌ Submerge the panel in water or chemicals
• ❌ Use solvent-based cleaners (acetone, lacquer thinner, etc.)
• ❌ Press buttons with sharp objects (pens, keys, fingernails)

Overlay Replacement:

If your overlay becomes worn, faded, peeling, or buttons are unresponsive due to overlay damage, you can order a replacement overlay separately. The standard ML400 overlay (Jets / Aux / Temp / Light) is available as part 58-138-1292.

🎯 Ideal Applications

Application	Suitability
♨️ Replacement for failed ML400 topside	✅ Direct fit
♨️ OEM use by spa builders	✅ Ideal — pair with custom overlay
♨️ Repair shop service inventory	✅ Use existing overlay from customer’s old panel
♨️ Spas with Balboa EL or GL spa packs	✅ Compatible
♨️ Bullfrog, Hydropool, Clearwater (with EL/GL packs)	✅ Often used as OEM topside

Common Replacement Scenarios:

• LCD display has gone blank or shows partial segments
• One or more buttons no longer respond
• Internal water damage from a failed overlay seal
• Cable damaged or pulled during cabinet service
• Builder/installer needs a base panel for a custom overlay design

❓ Frequently Asked Questions

Q: Is the overlay included? A: No — this listing is for the topside panel only, without the overlay sticker. You can either transfer the overlay from your existing panel or purchase a replacement overlay separately. The standard Jets / Aux / Temp / Light overlay is part 58-138-1292.

Q: How do I know if this fits my spa? A: Check your spa pack model number — it should start with “EL” (EL2000, EL8000) or “GL” (GL2000, GL2001, GL8000). If your spa pack is in either of those families and your existing topside has an 8-pin Molex (Mate-N-Lok) plug, this will fit.

Q: What’s the cable length? A: The cable is 7 feet long. If you need more reach, 50 ft and 100 ft extension cables with 8-pin Molex connectors are available.

Q: Will this work with my 120V or 240V spa? A: Yes — the topside itself runs on low-voltage signal from the spa pack, so it works regardless of whether your spa pack is wired for 120V or 240V service. The voltage of your spa pack is a separate matter from the topside.

Q: What does the LCD display show? A: Current water temperature, set temperature, mode icons (heater, pump, blower, light status), maintenance reminders, and error codes from the spa pack.

Q: Will it display error codes from my spa pack? A: Yes. Error codes originate from the spa pack and are displayed on the topside. Refer to your spa pack manual to interpret codes.

Q: My existing topside is part 52684. Can I use this? A: Yes. Part 52684 is the same physical topside but with the overlay pre-applied. This listing (Balboa OEM 53291) is the same panel without the overlay. Add the matching overlay (58-138-1292) and you have an exact replacement for 52684.

Q: Can I install this myself? A: If you’re comfortable safely shutting off power at the GFCI breaker and working inside the spa cabinet, DIY installation is possible. If you’re not, a licensed electrician is recommended for NEC and local code compliance.

Q: What warranty is included? A: This part carries a 1-year limited manufacturer warranty from Balboa Water Group. Contact Parts4Tubs for full warranty terms and claim procedures.

Q: Do you ship across the US? A: Yes — Parts4Tubs ships to all 50 states with fast US delivery.

🏆 Why Choose the Balboa ML400 Topside

• ✅ Genuine Balboa OEM — Not a copy or aftermarket lookalike
• ✅ Crisp LCD display — Clear icons, temperature, and diagnostics at a glance
• ✅ Hot-swappable — Drop-in replacement on any compatible EL or GL system
• ✅ Trusted by builders — Used as factory equipment on Bullfrog, Hydropool, Clearwater, and many other premium spa brands
• ✅ Without overlay flexibility — Transfer your existing overlay or apply a custom one
• ✅ Backed by manufacturer warranty — 1-year limited Balboa Water Group warranty

🤝 Why Buy From Parts4Tubs

• ✅ Fast US shipping to all 50 states
• ✅ US-based customer support team
• ✅ Expert advice from spa specialists
• ✅ Compatibility assistance — send us your spa pack model number
• ✅ Full manufacturer warranty support
• ✅ Easy returns within 30 days
• ✅ Replacement overlays and 8-pin extension cables available
• ✅ Genuine OEM Balboa Water Group parts

Not sure about compatibility? Contact our team with your spa pack model number (the “EL” or “GL” code on the equipment label) and we’ll confirm fit before you order.

✨ Summary

The Balboa ML400 topside (without overlay) is the genuine OEM replacement panel for any Balboa EL or GL series spa pack. With its 4-button layout, graphical LCD display, 7-foot cable, and 8-pin Mate-N-Lok connector, it’s a direct, hot-swappable fit on thousands of premium spas. Pair it with the matching overlay (sold separately) for a complete factory replacement, or use your existing overlay for a like-new repair. Order today from Parts4Tubs for fast US shipping and expert support.



What is a Hot Tub Topside Control?

A Hot Tub Topside Control, also known as a spa control panel or topside controller, is a user interface located on the outer surface of a hot tub or spa. This control panel allows you to interact with and manage various functions of your hot tub, such as adjusting the temperature, activating jets and pumps, setting filtration cycles, controlling lighting, and more. It serves as the command center that puts the power of customization at your fingertips, enabling you to create the perfect spa experience tailored to your preferences.

Typically equipped with a digital display, buttons, and possibly a touchscreen, a topside control panel provides an intuitive and user-friendly way to operate your hot tub. Some advanced models may even offer wireless connectivity, allowing you to control your hot tub remotely through a smartphone app.

The rest of this page covers what a topside control does, how it talks to the circuit board in your spa pack, and whether you can upgrade to a different panel.





How does a Topside Control Work?

A Hot Tub Topside Control, often equipped with a digital display and user-friendly buttons, is the primary interface that allows you to interact with and control various functions of your hot tub. Here's how it works:

1. User Interface: The topside control panel is mounted on the exterior of the hot tub, usually within arm's reach when you're seated inside. It features a digital screen that displays relevant information such as water temperature, pump status, and timer settings.
2. Menu Navigation: The control panel presents a menu system that you navigate using the buttons or touchscreen. This menu system provides access to different functions and settings of your hot tub.
3. Temperature Adjustment: One of the key functions of the topside control is temperature regulation. You can adjust the water temperature to your desired level, ensuring a comfortable and relaxing soak.
4. Pump and Jet Control: Through the control panel, you can activate and control the operation of various pumps and jets in your hot tub. This includes turning jets on or off, adjusting their intensity, and controlling the filtration system.
5. Lighting and Auxiliary Features: Many hot tubs come with additional features such as underwater lighting, waterfalls, and music systems. The topside control allows you to manage these features, creating an ambiance that suits your mood.
6. Timer and Programming: Modern topside controls often have programming capabilities, allowing you to set timers for filtration cycles, heating, and other functions. This automation ensures that your hot tub is ready for use when you want it.
7. Error Messages and Diagnostics: In case of any issues or malfunctions, the topside control panel can display error codes or messages. This helps you identify problems and communicate them to technicians for faster and more accurate repairs.
8. User Profiles: Some advanced topside controls offer the option to save user profiles. This is particularly useful if multiple people use the hot tub, as each person can have their preferred settings readily available.

In essence, the topside control serves as the bridge between you and your hot tub's various systems. It allows you to customize your hot tub experience, control its functions, and maintain optimal performance with ease. When it comes to replacing one, the part number matters far more than the look of the panel. A topside has to suit the pack it plugs into and the software that pack is running, so two panels with the same button layout are not necessarily interchangeable. Check the back of the panel first, then the label inside the control box next to the circuit board — the number is usually on one or the other. Note the plug type as well, because the cable and pin count vary between systems.

Can I upgrade a Topside Control?

Yes, you can upgrade a topside control on your hot tub to enjoy enhanced features and improved functionality. Upgrading your topside control can offer several benefits:

1. Advanced Features: Newer topside controls often come with advanced features that may not be available on older models. These features could include improved user interfaces, touchscreens, customizable settings, and compatibility with smart home systems.
2. Ease of Use: Upgraded topside controls may offer a more intuitive and user-friendly interface, making it easier to navigate through menus, adjust settings, and control various functions of your hot tub.
3. Energy Efficiency: Some upgraded controls offer energy-saving modes or programmable timers, allowing you to optimize the operation of your hot tub's components and reduce energy consumption.
4. Compatibility: If you've added new features or components to your hot tub since its original purchase, an upgraded topside control may be necessary to fully integrate and control these additions.
5. Error Detection and Diagnostics: Modern topside controls often have improved diagnostic capabilities, which can help you identify and address issues more efficiently. This can save you time and money on repairs.
6. Remote Access: Certain upgraded topside controls can be connected to mobile apps or home automation systems, allowing you to control your hot tub remotely. This can be especially convenient for preheating your hot tub before you arrive home.
7. Customization: Upgraded controls may offer more customization options, allowing you to tailor your hot tub experience to your preferences, such as personalized user profiles.

Before upgrading your topside control, consider the compatibility with your hot tub model and the specific features you're looking for. Consult your hot tub manufacturer's guidelines or get in touch to ensure a smooth and successful upgrade. At Parts4Tubs.com, I offer a range of topside controls and hot tub parts to help you enhance your hot tub experience. I’m ready to assist you in finding the right topside control that suits your needs and preferences.

What is a Hot Tub Keypad Overlay?

A hot tub keypad overlay, also known as a spa control panel overlay, is a protective and decorative component used in hot tubs and spas. It typically consists of a thin, clear or colored piece of material, often made of durable plastic or silicone, that is designed to cover and protect the control panel or keypad of the hot tub.

Here's what a hot tub keypad overlay does:

1. Protection: The overlay acts as a protective barrier for the underlying control panel or keypad. It shields the sensitive electronics and buttons from exposure to water, chemicals, UV rays, and physical damage, such as scratches or abrasions. This helps extend the lifespan of the control panel.

2. Enhancement: Many overlays are designed with labels, graphics, and button outlines that enhance the appearance of the control panel. They often include icons or text that provide clear instructions for operating the hot tub, making it user-friendly, especially for those who may not be familiar with the hot tub's functions.

3. Customization: Hot tub keypad overlays can be customized to match the branding or style of the hot tub manufacturer. They may feature the manufacturer's logo, model name, or specific design elements. Some hot tub owners choose to customize overlays to add a personal touch to their spa.

4. Ease of Cleaning: The overlay is easier to clean and maintain than the underlying control panel. Spills, dirt, or chemical residues that come into contact with the overlay can be wiped away without affecting the control panel's functionality.

5. Replacement: Over time, keypad overlays may wear out or become damaged due to exposure to harsh spa conditions. Fortunately, they are relatively easy and cost-effective to replace when needed, allowing you to refresh the appearance of your hot tub's control panel.

When replacing a hot tub keypad overlay, it's essential to choose one that is compatible with your hot tub's make and model to ensure that the button layout and functions match the original control panel. This compatibility ensures that the overlay fits correctly and accurately represents the hot tub's settings.

In summary, a hot tub keypad overlay serves as a protective, decorative, and informative layer for the control panel, enhancing the user experience and prolonging the life of the hot tub's control system.

How do you replace a hot tub keypad overlay?

Replacing a hot tub keypad overlay is generally a straightforward process that can be done with some basic tools and careful attention. Here's a step-by-step guide on how to replace a hot tub keypad overlay:

Tools and Materials Needed:

• New keypad overlay (ensure it's compatible with your hot tub model)
• Screwdriver (usually a Phillips-head)
• Mild cleaner or rubbing alcohol
• Soft cloth or paper towels

Step-by-Step Instructions:

1. Turn Off Power: Start by turning off the power to your hot tub. This is essential for safety reasons.

2. Access the Control Panel: Depending on your hot tub's design, you may need to remove a cover or panel to access the control panel. Use a screwdriver to remove any screws or fasteners holding the cover in place.

3. Remove the Old Overlay: Carefully peel off the old keypad overlay. Begin at one corner and gently lift it away from the control panel. Take your time and be cautious not to damage the control panel or its components.

4. Clean the Control Panel: After removing the old overlay, use a soft cloth or paper towel and a mild cleaner or rubbing alcohol to clean the control panel's surface. This step ensures that the new overlay adheres properly and looks clean.

5. Prepare the New Overlay: Ensure that the new hot tub keypad overlay is clean and free of any dust or debris. If the new overlay has an adhesive backing, remove the protective film to expose the adhesive.

6. Align and Apply the New Overlay: Carefully align the new overlay with the control panel. Make sure it matches the button layout and design of the control panel. Begin by aligning one corner and gradually press the overlay onto the control panel's surface, working your way across. Smooth out the overlay to prevent air bubbles or wrinkles.

7. Secure the Control Panel Cover: If you had to remove a cover or panel to access the control panel, reattach it using the screws or fasteners you removed earlier.

8. Turn On Power: Once the new overlay is securely in place, and the control panel cover is reattached, turn the power back on at the main circuit breaker.

9. Test the Keypad: Test the keypad buttons to ensure they function correctly. Press each button to verify that it corresponds to the correct function on the hot tub.

10. Final Cleaning: After installation and testing, wipe down the new overlay with a clean, dry cloth to remove any fingerprints or residue.

You've now successfully replaced your hot tub's keypad overlay. Make sure to use a compatible overlay, and exercise caution during the replacement process to avoid damaging the control panel.
